SPARK MAX CAN Locking Cable
- Description
-

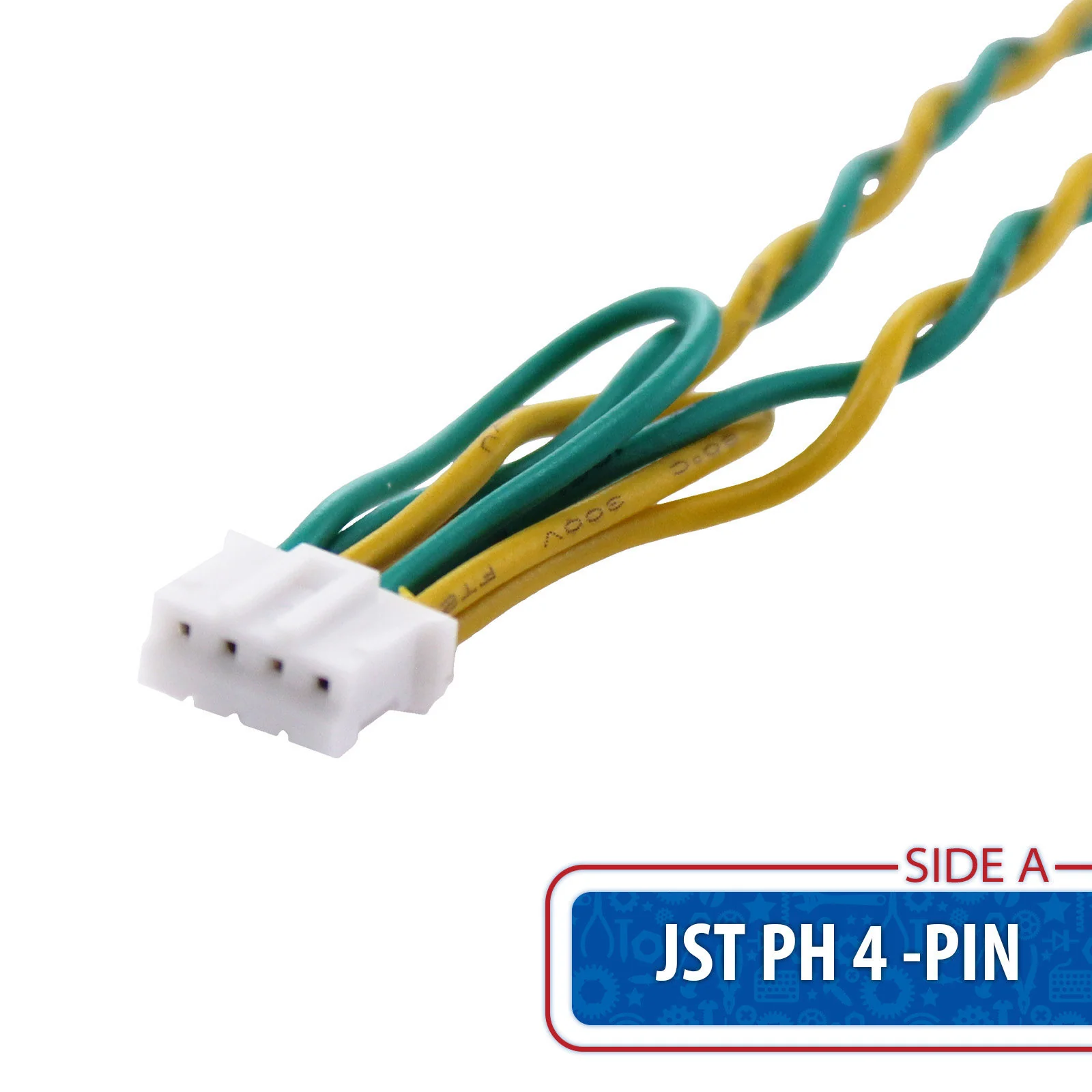

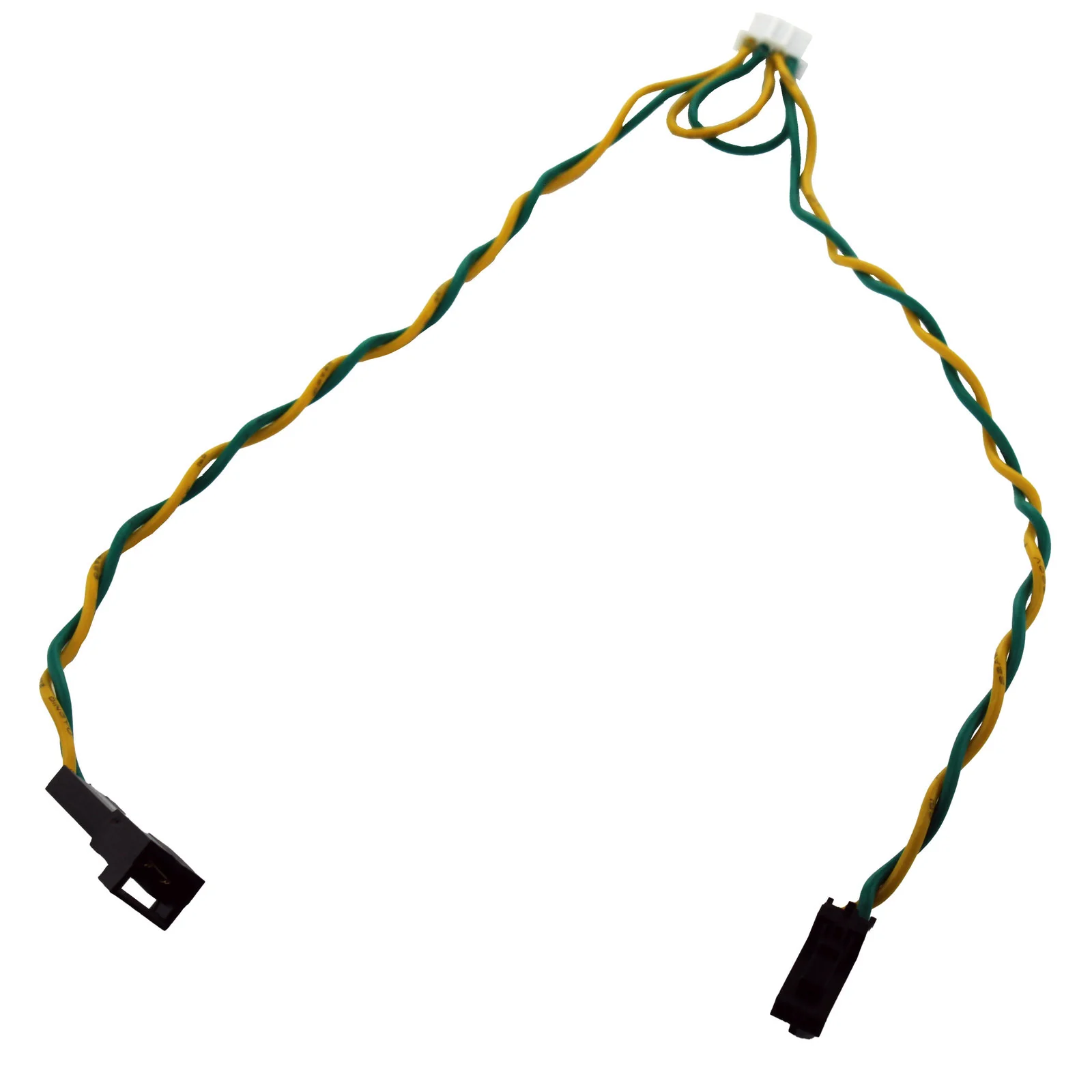

This version of the SPARK MAX CAN Cable bridges the H and L signals together. By doing this within the cable itself, the CAN Bus is less likely to break in disconnection from the SPARK MAX Motor Controller. One end is the JST-PH 4-pin connector, with the other splitting to one male and one female 0.1 in. 3-pin PWM. The CAN High is on the yellow wire and the CAN Low is on the green wire. Both have locking connectors to help ensure a sturdy connection. Utilizes Molex SL 70021 series locking connectors.
-
- Gauge: 22 AWG
- Wire Colors: Yellow, Green
- Description
-
This version of the SPARK MAX CAN Cable bridges the H and L signals together. By doing this within the cable itself, the CAN Bus is less likely to break in disconnection from the SPARK MAX Motor Controller. One end is the JST-PH 4-pin connector, with the other splitting to one male and one female 0.1 in. 3-pin PWM. The CAN High is on the yellow wire and the CAN Low is on the green wire. Both have locking connectors to help ensure a sturdy connection. Utilizes Molex SL 70021 series locking connectors.
-
- Gauge: 22 AWG
- Wire Colors: Yellow, Green
Original: $5.90
-65%$5.90
$2.06Description
- Description
-
This version of the SPARK MAX CAN Cable bridges the H and L signals together. By doing this within the cable itself, the CAN Bus is less likely to break in disconnection from the SPARK MAX Motor Controller. One end is the JST-PH 4-pin connector, with the other splitting to one male and one female 0.1 in. 3-pin PWM. The CAN High is on the yellow wire and the CAN Low is on the green wire. Both have locking connectors to help ensure a sturdy connection. Utilizes Molex SL 70021 series locking connectors.
-
- Gauge: 22 AWG
- Wire Colors: Yellow, Green
