SDS MK4c Pinion Kits

These Pinion Kits are used to allow NEO, Kraken, and Falcon Motors to interface with the SDS MK4c Modules.
  • Description

  • These Pinion Kits are used to allow NEO, Kraken, and Falcon Motors to interface with the SDS MK4c Modules.

    Included Items:

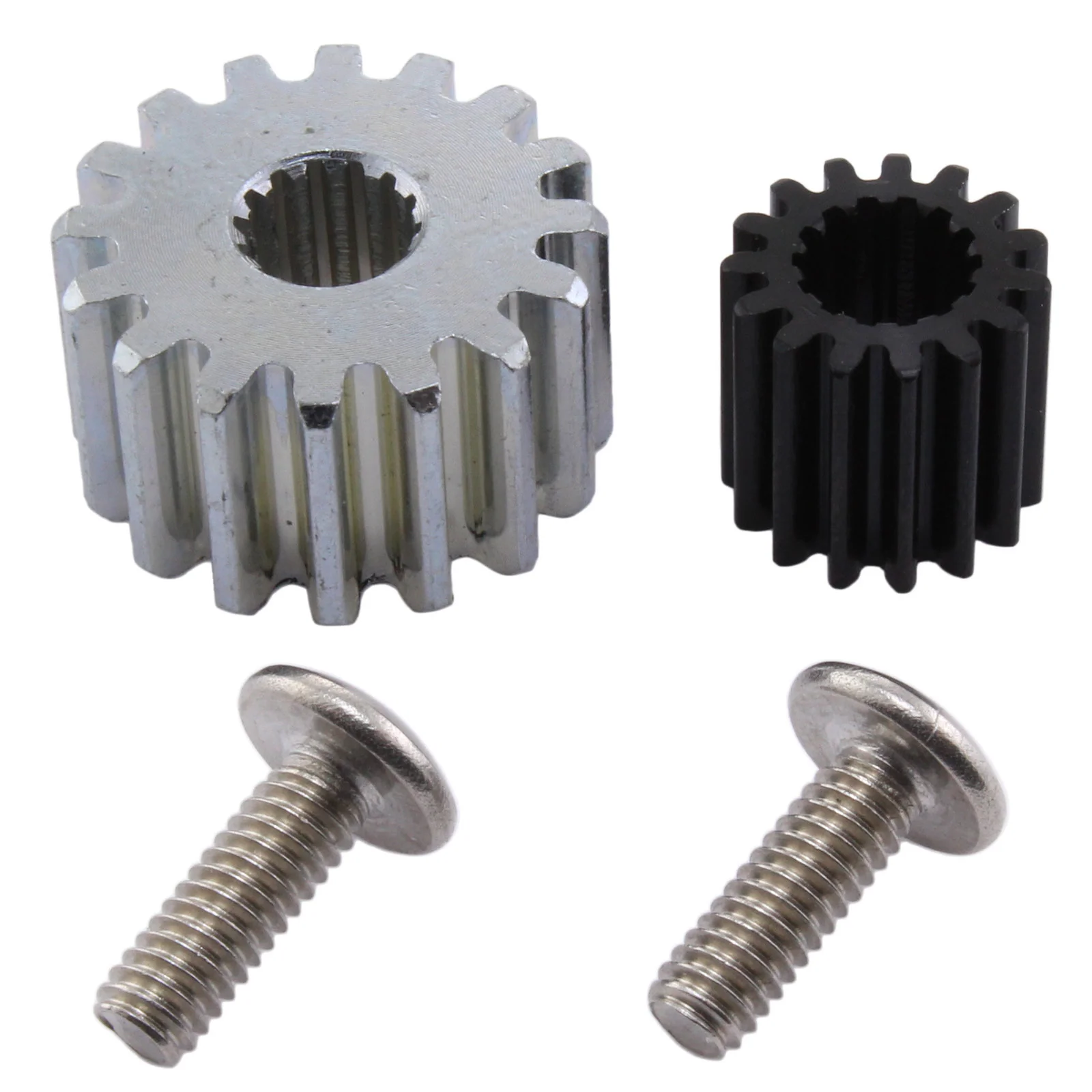

    Falcon 500 Kit
    • 1 - Gear, 20DP, 16T, Falcon Spline Bore
    • 1 - Gear, 32DP, 15T, Falcon Spline Bore
    • 2 - Screw, 8-32 X 1/2 Torx Button

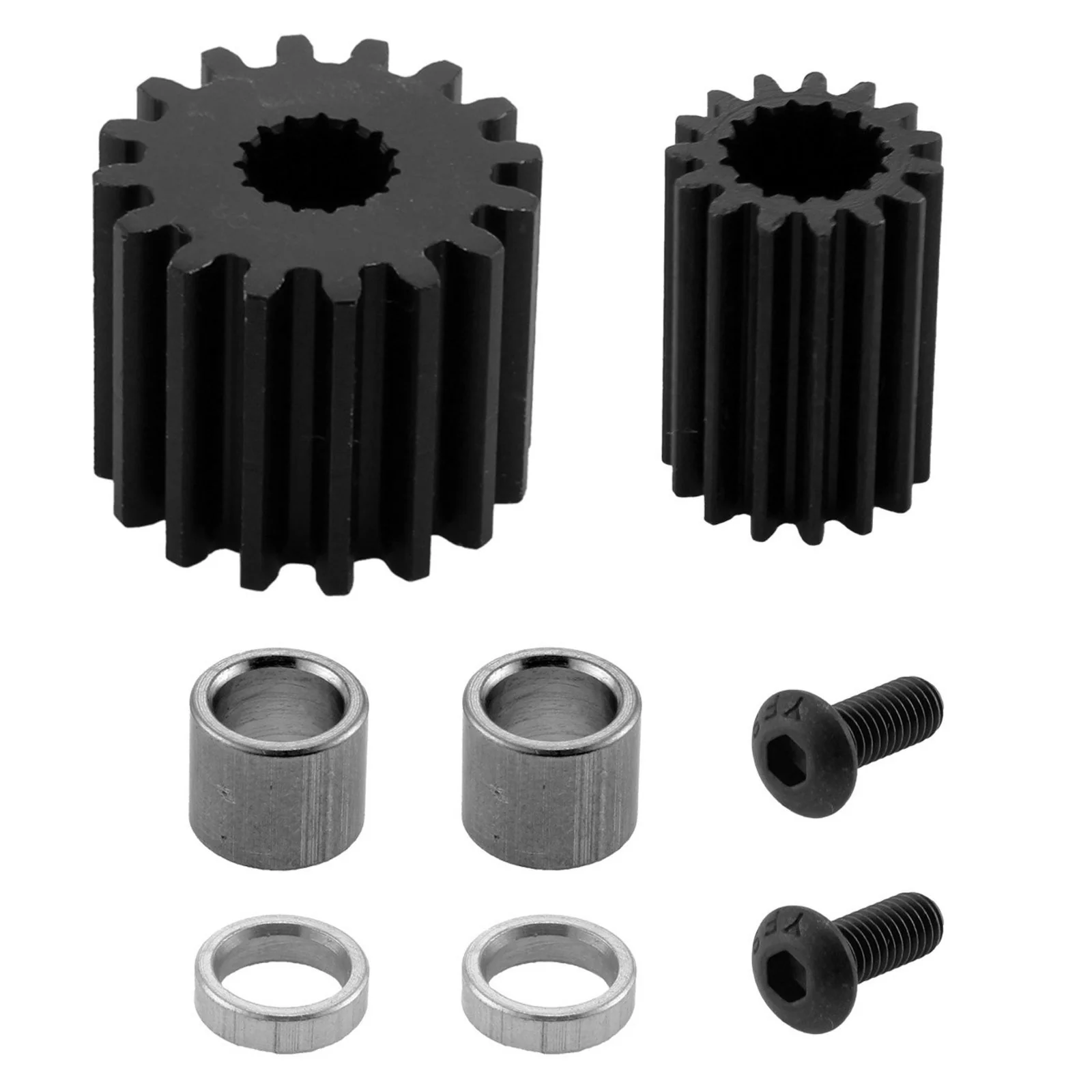

    Kraken X60 Kit
    • 1 - Gear, 20DP, 16T, SplineXS Bore
    • 1 - Gear, 32DP, 15T, SplineXS Bore
    • 2 - Screw, 10-32 X 1/2 Button
    • 2 - Spacer, 0.315 x 0.438 x 0.125
    • 2 - Spacer, 0.315 x 0.438 x 0.375

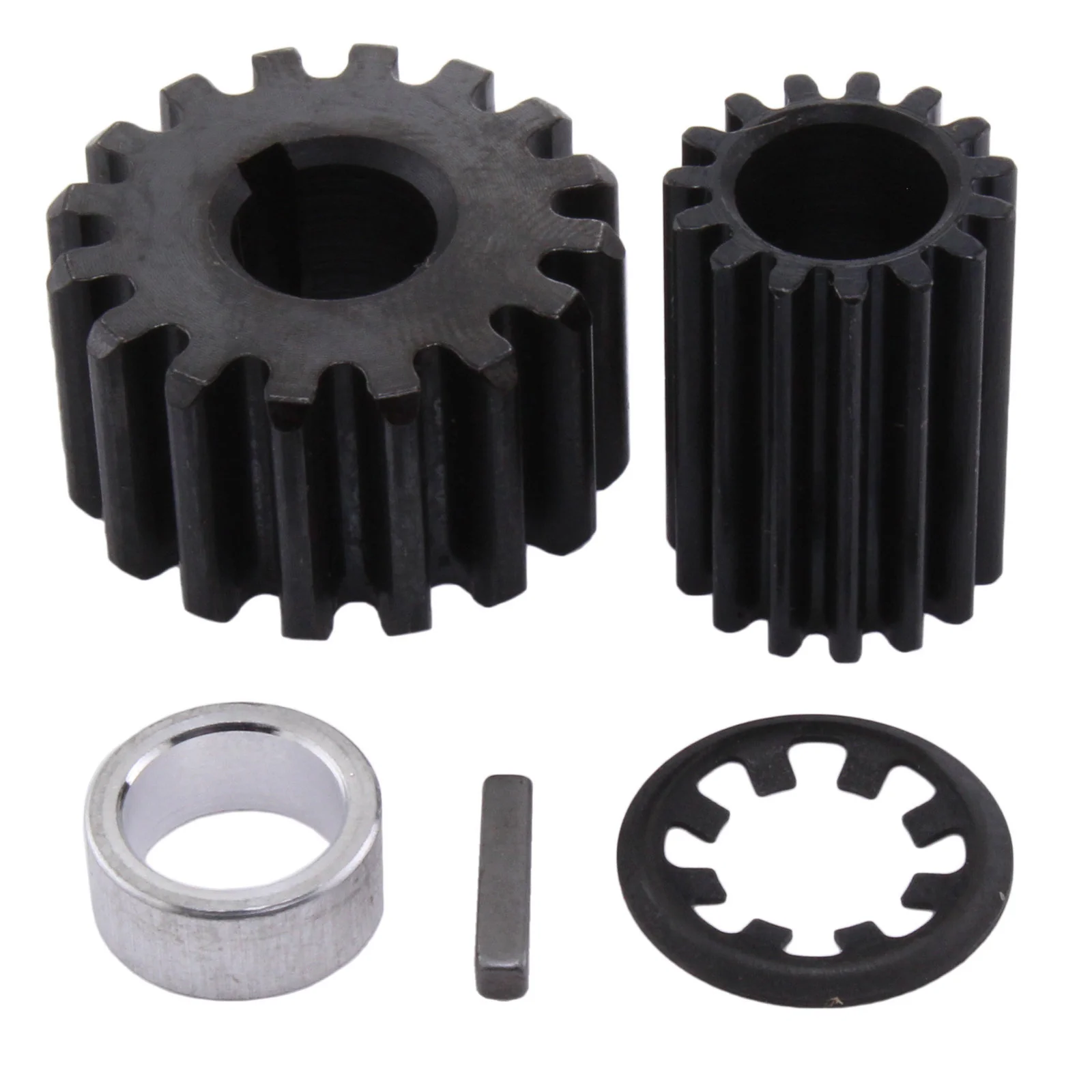

    NEO Kit (also works for NEO Vortex with 8mm keyed shaft)
    • 1 - Gear, 20DP, 16T, 8mm Bore
    • 1 - Gear, 32DP, 15T, 8mm Bore
    • 1 - Key, Machine, 2mm x 2mm x 12mm
    • 1 - Ring, Retaining, External, Push-On, 8mm
    • 1 - Spacer, 0.315 x 0.438 x 0.188
    ------------------------------------------------------------------------------------------
These Pinion Kits are used to allow NEO, Kraken, and Falcon Motors to interface with the SDS MK4c Modules.
  • Description

  • These Pinion Kits are used to allow NEO, Kraken, and Falcon Motors to interface with the SDS MK4c Modules.

    Included Items:

    Falcon 500 Kit
    • 1 - Gear, 20DP, 16T, Falcon Spline Bore
    • 1 - Gear, 32DP, 15T, Falcon Spline Bore
    • 2 - Screw, 8-32 X 1/2 Torx Button
    Kraken X60 Kit
    • 1 - Gear, 20DP, 16T, SplineXS Bore
    • 1 - Gear, 32DP, 15T, SplineXS Bore
    • 2 - Screw, 10-32 X 1/2 Button
    • 2 - Spacer, 0.315 x 0.438 x 0.125
    • 2 - Spacer, 0.315 x 0.438 x 0.375
    NEO Kit (also works for NEO Vortex with 8mm keyed shaft)
    • 1 - Gear, 20DP, 16T, 8mm Bore
    • 1 - Gear, 32DP, 15T, 8mm Bore
    • 1 - Key, Machine, 2mm x 2mm x 12mm
    • 1 - Ring, Retaining, External, Push-On, 8mm
    • 1 - Spacer, 0.315 x 0.438 x 0.188
    ------------------------------------------------------------------------------------------
