Line Follower

This sensor is designed to help a robot sense and follow a line.
  • Description
  • Specifications

  • This Line Follower is used in the Skitter Robot. It is a reflectance sensor array with sensors spaced at intervals of 0.375 in. along the board’s longer axis. This is designed to work with line following courses made from 3/4 in. black electrical tape.

    Included Hardware in am-4856b:
    • 1 - Skitter Line Follower Sensor Bracket (am-4730)

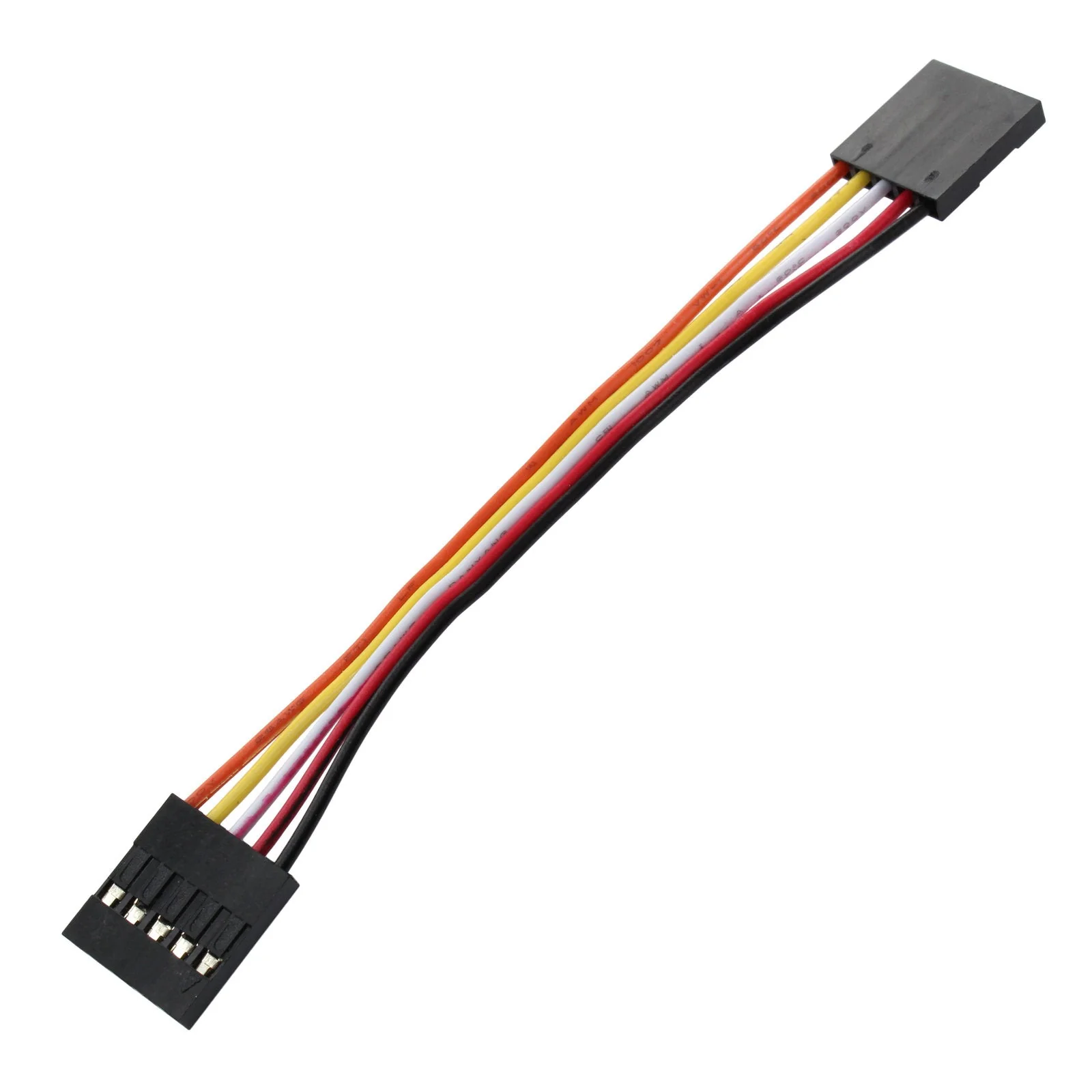

    • 1 - Skitter Line Follower Sensor Cable Spring 2024 (am-4818a)
    • 1 - Skitter Line Follower w/Header (am-4857)
    • Maximum Recommended Sensing Distance: 0.25 in. [6 mm]
    • Operating Voltage: 5.0 V
    • Optimal Sensing Distance: 0.125 in. [3 mm]
    • Output Format: 3 analog voltages
    • Output Voltage Range: 0 V to supplied voltage
    • Supply Current: 50 mA
This sensor is designed to help a robot sense and follow a line.
  • Description
  • Specifications

  • This Line Follower is used in the Skitter Robot. It is a reflectance sensor array with sensors spaced at intervals of 0.375 in. along the board’s longer axis. This is designed to work with line following courses made from 3/4 in. black electrical tape.

    Included Hardware in am-4856b:
    • 1 - Skitter Line Follower Sensor Bracket (am-4730)
    • 1 - Skitter Line Follower Sensor Cable Spring 2024 (am-4818a)
    • 1 - Skitter Line Follower w/Header (am-4857)
    • Maximum Recommended Sensing Distance: 0.25 in. [6 mm]
    • Operating Voltage: 5.0 V
    • Optimal Sensing Distance: 0.125 in. [3 mm]
    • Output Format: 3 analog voltages
    • Output Voltage Range: 0 V to supplied voltage
    • Supply Current: 50 mA
Select Option
From $3.50
Line Follower—
$3.50
